2 – GLSL framework for Raymarching

So what do we need to create worlds with raymarching? It’s really simple: a quad (two triangles) and a GLSL program made up of one vertex shader and one pixel shader. This GLSL program is used during the rendering of the quad. That’s all!

Raymarching: the floor!

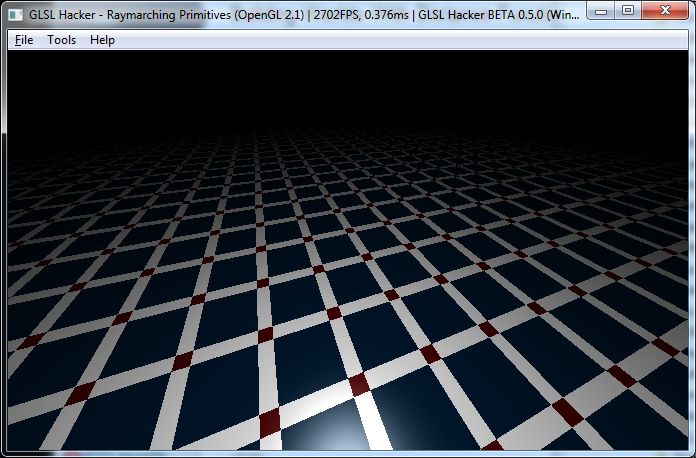

Here is the base code to get the image right above: a raymarched floor. All following raymarched shaders will update the distance_to_obj() function. That’s all…

Vertex shader:

void main()
{
  gl_TexCoord[0] = gl_MultiTexCoord0;
  gl_Position = ftransform();
}

Pixel shader:

uniform vec3 cam_pos;
uniform float time;
uniform vec2 resolution;

//uniform vec2 mouse;
float PI=3.14159265;

// Floor
vec2 obj_floor(in vec3 p)
{
  return vec2(p.y+10.0,0);
}

//Objects union
vec2 distance_to_obj(in vec3 p)
{
  return obj_floor(p);
}

//Floor Color (checkerboard)
vec3 floor_color(in vec3 p)
{
  if (fract(p.x*0.2)>0.2)
  {
    if (fract(p.z*0.2)>0.2)
      return vec3(0,0.1,0.2);
    else
      return vec3(1,1,1);
  }
  else
  {
    if (fract(p.z*.2)>.2)
      return vec3(1,1,1);
    else
      return vec3(0.3,0,0);
   }
}

// Primitive color
vec3 prim_c(in vec3 p)
{
  return vec3(0.6,0.6,0.8);
}

void main(void)
{
  vec2 q = gl_TexCoord[0].xy;
  vec2 vPos = -1.0 + 2.0 * q;

  // Camera up vector.
  vec3 vuv=vec3(0,1,0);

  // Camera lookat.
  vec3 vrp=vec3(0,0,0);

  //float mx=mouse.x*PI*2.0;
  //float my=mouse.y*PI/2.01;
  //vec3 prp=vec3(cos(my)*cos(mx),sin(my),cos(my)*sin(mx))*6.0;
  vec3 prp = cam_pos;

  // Camera setup.
  vec3 vpn=normalize(vrp-prp);
  vec3 u=normalize(cross(vuv,vpn));
  vec3 v=cross(vpn,u);
  vec3 vcv=(prp+vpn);
  //vec3 scrCoord=vcv+vPos.x*u*resolution.x/resolution.y+vPos.y*v;
  vec3 scrCoord=vcv+vPos.x*u*0.8+vPos.y*v*0.8;
  vec3 scp=normalize(scrCoord-prp);

  // Raymarching.
  const vec3 e=vec3(0.02,0,0);
  const float maxd=100.0; //Max depth
  vec2 d=vec2(0.02,0.0);
  vec3 c,p,N;

  float f=1.0;
  for(int i=0;i<256;i++)
  {
    if ((abs(d.x) < .001) || (f > maxd))
      break;

    f+=d.x;
    p=prp+scp*f;
    d = distance_to_obj(p);
  }

  if (f < maxd)
  {
    // y is used to manage materials.
    if (d.y==0)
      c=floor_color(p);
    else
      c=prim_c(p);

    vec3 n = vec3(d.x-distance_to_obj(p-e.xyy).x,
                  d.x-distance_to_obj(p-e.yxy).x,
                  d.x-distance_to_obj(p-e.yyx).x));
    N = normalize(n)
    float b=dot(N,normalize(prp-p));
    //simple phong lighting, LightPosition = CameraPosition
    gl_FragColor=vec4((b*c+pow(b,16.0))*(1.0-f*.01),1.0);
  }
  else
    gl_FragColor=vec4(0,0,0,1); //background color
}

This GLSL framework takes its source from this demo and this demo by Paulo Falcao.
