AMD has published a graphics driver for all modern Radeon graphics cards. Adrenalin 23.7.1 supports Radeon RX 7900, RX 7700, RX 7600, RX 6000, RX 5000, RX 500, RX 400 and RX Vega graphics cards. Radeon for laptop are also supported (RX 6800M, RX 6700M, RX 6600M, RX 6500M, RX 6300M, RX 5700M/5600M/5500M/5300M, and 600 Series Graphics).
Adrenalin 23.7.x comes with new OpenGL extensions, Vulkan 1.3.250, new Vulkan extensions and bug fixes.
Here are the main changes of version 23.7.1:
Highlights
– Support for additional Vulkan extensions. Click here for more information.Fixed Issues
– Certain virtual reality games or applications may encounter suboptimal performance or occasional stuttering on Radeon RX 7000 series GPUs.
– Application crash or driver timeout may be observed during playback of AV1 video content using DaVinci Resolve Studio.
– Improvements to high idle power when using select 4k@144Hz FreeSync enabled displays or multimonitor display configurations (such as 4k@144HZ or 4k@120Hz + 1440p@60Hz display) using on Radeon RX 7000 series GPUs.
– Intermittent corruption may be observed playing WWE 2K23 on some AMD Graphics Products, such as the Radeon RX 7900 XTX.
– Intermittent corruption may be observed after switching windows while playing Nioh 2 on some AMD Graphics Products, such as the Radeon RX 6800 XT.
Downloads
Quick driver information
Adrenalin 23.7.1

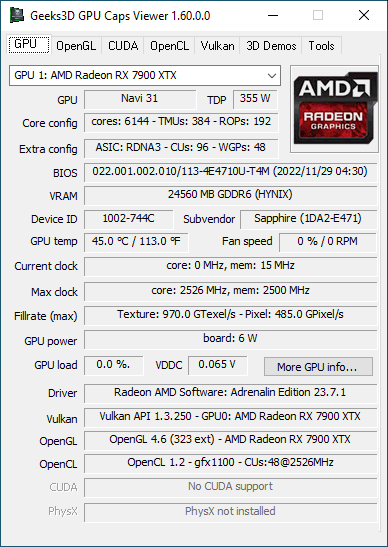

GPU Caps Viewer + RX 7900 XTX
OpenGL support
Adrenalin 23.7.1
Adrenalin 23.7.1 exposes OpenGL 4.6 and 323 extensions (core profile) for a Radeon RX 7900 XTX. This is 39 new extensions compared to latest driver v23.5.2. Remember, one year ago, AMD has removed a lot of extensions in their super optimized July 2022 edition (see HERE). Maybe these new 39 extensions are related to the July 2022 OpenGL bleeding…
New extensions:
- GL_AMD_conservative_depth - GL_AMD_multi_draw_indirect - GL_AMD_query_buffer_object - GL_AMD_seamless_cubemap_per_texture - GL_AMD_texture_cube_map_array - GL_ARB_compressed_texture_pixel_storage - GL_ARB_provoking_vertex - GL_ARB_shader_atomic_counter_ops - GL_ARB_shading_language_packing - GL_ARB_texture_buffer_object_rgb32 - GL_ARB_texture_env_crossbar - GL_ARB_texture_mirrored_repeat - GL_ARB_texture_query_lod - GL_ATI_texture_float - GL_ATI_texture_mirror_once - GL_EXT_bindable_uniform - GL_EXT_copy_texture - GL_EXT_draw_instanced - GL_EXT_packed_float - GL_EXT_rescale_normal - GL_EXT_separate_specular_color - GL_EXT_subtexture - GL_EXT_texture - GL_EXT_texture_cube_map - GL_EXT_vertex_array_bgra - GL_EXT_vertex_attrib_64bit - GL_IBM_texture_mirrored_repeat - GL_KHR_texture_compression_astc_ldr - GL_NV_conditional_render - GL_NV_half_float - GL_NV_texgen_reflection - GL_NV_timeline_semaphore - GL_SGIS_generate_mipmap - GL_SGIS_texture_edge_clamp - GL_SGIS_texture_lod - GL_SUN_multi_draw_arrays - WGL_ARB_extensions_string - WGL_EXT_create_context_es_profile
Complete list for driver v23.7.1:
GL_RENDERER: AMD Radeon RX 7900 XTX GL_VENDOR: ATI Technologies Inc. GL_VERSION: 4.6.0 Core Profile Context 23.7.1.230626 OpenGL extensions: 323 - GL_AMD_blend_minmax_factor - GL_AMD_conservative_depth - GL_AMD_depth_clamp_separate - GL_AMD_gpu_shader_half_float - GL_AMD_gpu_shader_int16 - GL_AMD_gpu_shader_int64 - GL_AMD_multi_draw_indirect - GL_AMD_pinned_memory - GL_AMD_query_buffer_object - GL_AMD_sample_positions - GL_AMD_seamless_cubemap_per_texture - GL_AMD_shader_trinary_minmax - GL_AMD_texture_cube_map_array - GL_AMD_vertex_shader_layer - GL_AMD_vertex_shader_viewport_index - GL_ARB_ES2_compatibility - GL_ARB_ES3_compatibility - GL_ARB_arrays_of_arrays - GL_ARB_base_instance - GL_ARB_bindless_texture - GL_ARB_blend_func_extended - GL_ARB_buffer_storage - GL_ARB_clear_buffer_object - GL_ARB_clear_texture - GL_ARB_clip_control - GL_ARB_color_buffer_float - GL_ARB_compressed_texture_pixel_storage - GL_ARB_compute_shader - GL_ARB_conditional_render_inverted - GL_ARB_conservative_depth - GL_ARB_copy_buffer - GL_ARB_copy_image - GL_ARB_cull_distance - GL_ARB_debug_output - GL_ARB_depth_buffer_float - GL_ARB_depth_clamp - GL_ARB_depth_texture - GL_ARB_derivative_control - GL_ARB_direct_state_access - GL_ARB_draw_buffers - GL_ARB_draw_buffers_blend - GL_ARB_draw_elements_base_vertex - GL_ARB_draw_indirect - GL_ARB_draw_instanced - GL_ARB_enhanced_layouts - GL_ARB_explicit_attrib_location - GL_ARB_explicit_uniform_location - GL_ARB_fragment_coord_conventions - GL_ARB_fragment_layer_viewport - GL_ARB_fragment_program - GL_ARB_fragment_program_shadow - GL_ARB_fragment_shader - GL_ARB_framebuffer_no_attachments - GL_ARB_framebuffer_object - GL_ARB_framebuffer_sRGB - GL_ARB_geometry_shader4 - GL_ARB_get_program_binary - GL_ARB_get_texture_sub_image - GL_ARB_gl_spirv - GL_ARB_gpu_shader5 - GL_ARB_gpu_shader_fp64 - GL_ARB_gpu_shader_int64 - GL_ARB_half_float_pixel - GL_ARB_half_float_vertex - GL_ARB_indirect_parameters - GL_ARB_instanced_arrays - GL_ARB_internalformat_query - GL_ARB_internalformat_query2 - GL_ARB_invalidate_subdata - GL_ARB_map_buffer_range - GL_ARB_multi_bind - GL_ARB_multi_draw_indirect - GL_ARB_multisample - GL_ARB_multitexture - GL_ARB_occlusion_query - GL_ARB_occlusion_query2 - GL_ARB_parallel_shader_compile - GL_ARB_pipeline_statistics_query - GL_ARB_pixel_buffer_object - GL_ARB_point_parameters - GL_ARB_point_sprite - GL_ARB_polygon_offset_clamp - GL_ARB_post_depth_coverage - GL_ARB_program_interface_query - GL_ARB_provoking_vertex - GL_ARB_query_buffer_object - GL_ARB_robustness - GL_ARB_sample_shading - GL_ARB_sampler_objects - GL_ARB_seamless_cube_map - GL_ARB_seamless_cubemap_per_texture - GL_ARB_separate_shader_objects - GL_ARB_shader_atomic_counter_ops - GL_ARB_shader_atomic_counters - GL_ARB_shader_ballot - GL_ARB_shader_bit_encoding - GL_ARB_shader_clock - GL_ARB_shader_draw_parameters - GL_ARB_shader_group_vote - GL_ARB_shader_image_load_store - GL_ARB_shader_image_size - GL_ARB_shader_objects - GL_ARB_shader_precision - GL_ARB_shader_stencil_export - GL_ARB_shader_storage_buffer_object - GL_ARB_shader_subroutine - GL_ARB_shader_texture_image_samples - GL_ARB_shader_texture_lod - GL_ARB_shader_viewport_layer_array - GL_ARB_shading_language_100 - GL_ARB_shading_language_420pack - GL_ARB_shading_language_packing - GL_ARB_shadow - GL_ARB_shadow_ambient - GL_ARB_sparse_buffer - GL_ARB_sparse_texture - GL_ARB_spirv_extensions - GL_ARB_stencil_texturing - GL_ARB_sync - GL_ARB_tessellation_shader - GL_ARB_texture_barrier - GL_ARB_texture_border_clamp - GL_ARB_texture_buffer_object - GL_ARB_texture_buffer_object_rgb32 - GL_ARB_texture_buffer_range - GL_ARB_texture_compression - GL_ARB_texture_compression_bptc - GL_ARB_texture_compression_rgtc - GL_ARB_texture_cube_map - GL_ARB_texture_cube_map_array - GL_ARB_texture_env_add - GL_ARB_texture_env_combine - GL_ARB_texture_env_crossbar - GL_ARB_texture_env_dot3 - GL_ARB_texture_filter_anisotropic - GL_ARB_texture_filter_minmax - GL_ARB_texture_float - GL_ARB_texture_gather - GL_ARB_texture_mirror_clamp_to_edge - GL_ARB_texture_mirrored_repeat - GL_ARB_texture_multisample - GL_ARB_texture_multisample_no_array - GL_ARB_texture_non_power_of_two - GL_ARB_texture_query_levels - GL_ARB_texture_query_lod - GL_ARB_texture_rectangle - GL_ARB_texture_rg - GL_ARB_texture_rgb10_a2ui - GL_ARB_texture_stencil8 - GL_ARB_texture_storage - GL_ARB_texture_storage_multisample - GL_ARB_texture_swizzle - GL_ARB_texture_view - GL_ARB_timer_query - GL_ARB_transform_feedback - GL_ARB_transform_feedback2 - GL_ARB_transform_feedback3 - GL_ARB_transform_feedback_instanced - GL_ARB_transform_feedback_overflow_query - GL_ARB_transpose_matrix - GL_ARB_uniform_buffer_object - GL_ARB_vertex_array_bgra - GL_ARB_vertex_array_object - GL_ARB_vertex_attrib_64bit - GL_ARB_vertex_attrib_binding - GL_ARB_vertex_buffer_object - GL_ARB_vertex_program - GL_ARB_vertex_shader - GL_ARB_vertex_type_10f_11f_11f_rev - GL_ARB_vertex_type_2_10_10_10_rev - GL_ARB_viewport_array - GL_ARB_window_pos - GL_ATI_draw_buffers - GL_ATI_meminfo - GL_ATI_separate_stencil - GL_ATI_shader_texture_lod - GL_ATI_texture_env_combine3 - GL_ATI_texture_float - GL_ATI_texture_mirror_once - GL_EXT_abgr - GL_EXT_bgra - GL_EXT_bindable_uniform - GL_EXT_blend_color - GL_EXT_blend_equation_separate - GL_EXT_blend_func_separate - GL_EXT_blend_minmax - GL_EXT_blend_subtract - GL_EXT_clip_cull_distance - GL_EXT_color_buffer_half_float - GL_EXT_compiled_vertex_array - GL_EXT_copy_buffer - GL_EXT_copy_image - GL_EXT_copy_texture - GL_EXT_debug_label - GL_EXT_depth_bounds_test - GL_EXT_direct_state_access - GL_EXT_draw_buffers2 - GL_EXT_draw_buffers_indexed - GL_EXT_draw_instanced - GL_EXT_draw_range_elements - GL_EXT_fog_coord - GL_EXT_framebuffer_blit - GL_EXT_framebuffer_multisample - GL_EXT_framebuffer_object - GL_EXT_framebuffer_sRGB - GL_EXT_geometry_point_size - GL_EXT_geometry_shader4 - GL_EXT_gpu_program_parameters - GL_EXT_gpu_shader4 - GL_EXT_gpu_shader5 - GL_EXT_memory_object - GL_EXT_memory_object_win32 - GL_EXT_multi_draw_arrays - GL_EXT_nonuniform_qualifier - GL_EXT_packed_depth_stencil - GL_EXT_packed_float - GL_EXT_packed_pixels - GL_EXT_pixel_buffer_object - GL_EXT_point_parameters - GL_EXT_polygon_offset_clamp - GL_EXT_provoking_vertex - GL_EXT_render_snorm - GL_EXT_rescale_normal - GL_EXT_sRGB_write_control - GL_EXT_secondary_color - GL_EXT_semaphore - GL_EXT_semaphore_win32 - GL_EXT_separate_specular_color - GL_EXT_shader_image_load_store - GL_EXT_shader_integer_mix - GL_EXT_shader_io_blocks - GL_EXT_shadow_funcs - GL_EXT_stencil_wrap - GL_EXT_subtexture - GL_EXT_tessellation_point_size - GL_EXT_tessellation_shader - GL_EXT_texture - GL_EXT_texture3D - GL_EXT_texture_array - GL_EXT_texture_border_clamp - GL_EXT_texture_buffer - GL_EXT_texture_buffer_object - GL_EXT_texture_compression_bptc - GL_EXT_texture_compression_latc - GL_EXT_texture_compression_rgtc - GL_EXT_texture_compression_s3tc - GL_EXT_texture_cube_map - GL_EXT_texture_edge_clamp - GL_EXT_texture_env_add - GL_EXT_texture_env_combine - GL_EXT_texture_env_dot3 - GL_EXT_texture_filter_anisotropic - GL_EXT_texture_format_BGRA8888 - GL_EXT_texture_integer - GL_EXT_texture_lod - GL_EXT_texture_lod_bias - GL_EXT_texture_mirror_clamp - GL_EXT_texture_object - GL_EXT_texture_rectangle - GL_EXT_texture_sRGB - GL_EXT_texture_sRGB_R8 - GL_EXT_texture_sRGB_RG8 - GL_EXT_texture_sRGB_decode - GL_EXT_texture_shared_exponent - GL_EXT_texture_snorm - GL_EXT_texture_storage - GL_EXT_timer_query - GL_EXT_transform_feedback - GL_EXT_vertex_array - GL_EXT_vertex_array_bgra - GL_EXT_vertex_attrib_64bit - GL_IBM_texture_mirrored_repeat - GL_KHR_blend_equation_advanced - GL_KHR_blend_equation_advanced_coherent - GL_KHR_debug - GL_KHR_no_error - GL_KHR_parallel_shader_compile - GL_KHR_robust_buffer_access_behavior - GL_KHR_robustness - GL_KHR_texture_compression_astc_ldr - GL_NV_blend_square - GL_NV_conditional_render - GL_NV_copy_image - GL_NV_depth_buffer_float - GL_NV_float_buffer - GL_NV_half_float - GL_NV_primitive_restart - GL_NV_shader_atomic_int64 - GL_NV_texgen_reflection - GL_NV_texture_barrier - GL_NV_timeline_semaphore - GL_OES_EGL_image - GL_OVR_multiview - GL_OVR_multiview2 - GL_OVR_multiview_multisampled_render_to_texture - GL_S3_s3tc - GL_SGIS_generate_mipmap - GL_SGIS_texture_edge_clamp - GL_SGIS_texture_lod - GL_SUN_multi_draw_arrays - WGL_EXT_swap_control - WGL_AMD_gpu_association - WGL_ARB_buffer_region - WGL_ARB_context_flush_control - WGL_ARB_create_context - WGL_ARB_create_context_no_error - WGL_ARB_create_context_profile - WGL_ARB_extensions_string - WGL_ARB_framebuffer_sRGB - WGL_ARB_make_current_read - WGL_ARB_multisample - WGL_ARB_pbuffer - WGL_ARB_pixel_format - WGL_ARB_pixel_format_float - WGL_ARB_render_texture - WGL_EXT_create_context_es_profile - WGL_EXT_create_context_es2_profile - WGL_EXT_extensions_string - WGL_EXT_swap_control_tear - WGL_I3D_genlock - WGL_NV_DX_interop - WGL_NV_DX_interop2 - WGL_NV_swap_group
Vulkan support
Adrenalin 23.7.1 exposes Vulkan 1.3.250 and 163 device extensions for a Radeon RX 7900 XT / XTX on Windows 10 (64-bit). 10 new extensions have been added:
– VK_KHR_cooperative_matrix (Vulkan 1.3.255)
This extension adds support for using cooperative matrix types in SPIR-V. Cooperative matrix types are medium-sized matrices that are primarily supported in compute shaders, where the storage for the matrix is spread across all invocations in some scope (usually a subgroup) and those invocations cooperate to efficiently perform matrix multiplies - For Radeon RX 7000 series.
– VK_KHR_ray_tracing_position_fetch
This extension adds the ability to fetch the vertex positions in the shader from a hit triangle as stored in the acceleration structure - For Radeon RX 6000 and newer series.
– VK_KHR_video_decode_h264
– VK_KHR_video_decode_h265
– VK_KHR_video_decode_queue
– VK_KHR_video_queue
– VK_EXT_device_address_binding_report
– VK_EXT_dynamic_rendering_unused_attachments
– VK_EXT_mutable_descriptor_type
– VK_VALVE_mutable_descriptor_type

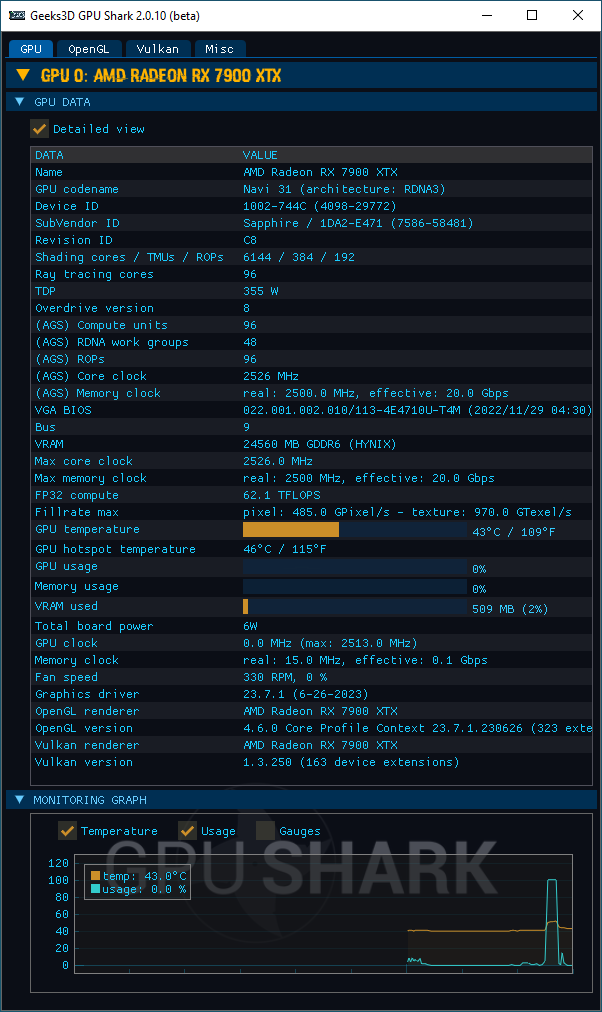

Complete report fro GPUShark 2
# of Vulkan devices: 1
- Device 1
- name: AMD Radeon RX 7900 XTX
- device type: VK_PHYSICAL_DEVICE_TYPE_DISCRETE_GPU
- device ID: 1002-744C
- API version: 1.3.250
- VK_KHR_ray_tracing_pipeline information:
- shaderGroupHandleSize: 32
- maxRayRecursionDepth: 1
- maxShaderGroupStride: 4096
- shaderGroupBaseAlignment: 64
- shaderGroupHandleCaptureReplaySize: 32
- maxRayDispatchInvocationCount: 1073741824
- shaderGroupHandleAlignment: 4
- maxRayHitAttributeSize: 32
- maxRayDispatchInvocationCount: 1073741824
- VK_KHR_acceleration_structure information:
- maxGeometryCount: 16777216
- maxInstanceCount: 16777216
- maxPrimitiveCount: 536870912
- VK_AMD_shader_core_properties information:
- shaderEngineCount: 6
- shaderArraysPerEngineCount: 2
- computeUnitsPerShaderArray: 8
- simdPerComputeUnit: 2
- wavefrontsPerSimd: 16
- wavefrontSize: 64
- sgprsPerSimd: 2048
- minSgprAllocation: 128
- maxSgprAllocation: 104
- sgprAllocationGranularity: 128
- vgprsPerSimd: 1536
- minVgprAllocation: 24
- maxVgprAllocation: 256
- vgprAllocationGranularity: 24
- VK_KHR_driver_properties information:
- driverName: AMD proprietary driver
- driverID_str: VK_DRIVER_ID_AMD_PROPRIETARY_KHR
- driverID: 1
- conformanceVersion: 1.3.1.3
- driverInfo: 23.7.1 (LLPC)
- # of extensions: 163
- VK_KHR_16bit_storage
- VK_KHR_8bit_storage
- VK_KHR_acceleration_structure
- VK_KHR_bind_memory2
- VK_KHR_buffer_device_address
- VK_KHR_cooperative_matrix
- VK_KHR_copy_commands2
- VK_KHR_create_renderpass2
- VK_KHR_dedicated_allocation
- VK_KHR_deferred_host_operations
- VK_KHR_depth_stencil_resolve
- VK_KHR_descriptor_update_template
- VK_KHR_device_group
- VK_KHR_draw_indirect_count
- VK_KHR_driver_properties
- VK_KHR_dynamic_rendering
- VK_KHR_external_fence
- VK_KHR_external_fence_win32
- VK_KHR_external_memory
- VK_KHR_external_memory_win32
- VK_KHR_external_semaphore
- VK_KHR_external_semaphore_win32
- VK_KHR_format_feature_flags2
- VK_KHR_fragment_shader_barycentric
- VK_KHR_fragment_shading_rate
- VK_KHR_get_memory_requirements2
- VK_KHR_global_priority
- VK_KHR_imageless_framebuffer
- VK_KHR_image_format_list
- VK_KHR_maintenance1
- VK_KHR_maintenance2
- VK_KHR_maintenance3
- VK_KHR_maintenance4
- VK_KHR_map_memory2
- VK_KHR_multiview
- VK_KHR_pipeline_executable_properties
- VK_KHR_pipeline_library
- VK_KHR_push_descriptor
- VK_KHR_ray_query
- VK_KHR_ray_tracing_maintenance1
- VK_KHR_ray_tracing_pipeline
- VK_KHR_ray_tracing_position_fetch
- VK_KHR_relaxed_block_layout
- VK_KHR_sampler_mirror_clamp_to_edge
- VK_KHR_sampler_ycbcr_conversion
- VK_KHR_separate_depth_stencil_layouts
- VK_KHR_shader_atomic_int64
- VK_KHR_shader_clock
- VK_KHR_shader_draw_parameters
- VK_KHR_shader_float16_int8
- VK_KHR_shader_float_controls
- VK_KHR_shader_integer_dot_product
- VK_KHR_shader_non_semantic_info
- VK_KHR_shader_subgroup_extended_types
- VK_KHR_shader_subgroup_uniform_control_flow
- VK_KHR_shader_terminate_invocation
- VK_KHR_spirv_1_4
- VK_KHR_storage_buffer_storage_class
- VK_KHR_swapchain
- VK_KHR_swapchain_mutable_format
- VK_KHR_synchronization2
- VK_KHR_timeline_semaphore
- VK_KHR_uniform_buffer_standard_layout
- VK_KHR_variable_pointers
- VK_KHR_video_decode_h264
- VK_KHR_video_decode_h265
- VK_KHR_video_decode_queue
- VK_KHR_video_queue
- VK_KHR_vulkan_memory_model
- VK_KHR_win32_keyed_mutex
- VK_KHR_workgroup_memory_explicit_layout
- VK_KHR_zero_initialize_workgroup_memory
- VK_EXT_4444_formats
- VK_EXT_attachment_feedback_loop_layout
- VK_EXT_border_color_swizzle
- VK_EXT_calibrated_timestamps
- VK_EXT_color_write_enable
- VK_EXT_conditional_rendering
- VK_EXT_conservative_rasterization
- VK_EXT_custom_border_color
- VK_EXT_depth_clamp_zero_one
- VK_EXT_depth_clip_control
- VK_EXT_depth_clip_enable
- VK_EXT_depth_range_unrestricted
- VK_EXT_descriptor_buffer
- VK_EXT_descriptor_indexing
- VK_EXT_device_address_binding_report
- VK_EXT_device_fault
- VK_EXT_dynamic_rendering_unused_attachments
- VK_EXT_extended_dynamic_state
- VK_EXT_extended_dynamic_state2
- VK_EXT_extended_dynamic_state3
- VK_EXT_external_memory_host
- VK_EXT_full_screen_exclusive
- VK_EXT_global_priority
- VK_EXT_global_priority_query
- VK_EXT_hdr_metadata
- VK_EXT_host_query_reset
- VK_EXT_image_robustness
- VK_EXT_image_sliced_view_of_3d
- VK_EXT_image_view_min_lod
- VK_EXT_index_type_uint8
- VK_EXT_inline_uniform_block
- VK_EXT_line_rasterization
- VK_EXT_load_store_op_none
- VK_EXT_memory_budget
- VK_EXT_memory_priority
- VK_EXT_mesh_shader
- VK_EXT_mutable_descriptor_type
- VK_EXT_non_seamless_cube_map
- VK_EXT_pageable_device_local_memory
- VK_EXT_pipeline_creation_cache_control
- VK_EXT_pipeline_creation_feedback
- VK_EXT_pipeline_library_group_handles
- VK_EXT_post_depth_coverage
- VK_EXT_primitive_topology_list_restart
- VK_EXT_private_data
- VK_EXT_provoking_vertex
- VK_EXT_queue_family_foreign
- VK_EXT_robustness2
- VK_EXT_sampler_filter_minmax
- VK_EXT_sample_locations
- VK_EXT_scalar_block_layout
- VK_EXT_separate_stencil_usage
- VK_EXT_shader_atomic_float
- VK_EXT_shader_atomic_float2
- VK_EXT_shader_demote_to_helper_invocation
- VK_EXT_shader_image_atomic_int64
- VK_EXT_shader_module_identifier
- VK_EXT_shader_stencil_export
- VK_EXT_shader_subgroup_ballot
- VK_EXT_shader_subgroup_vote
- VK_EXT_shader_viewport_index_layer
- VK_EXT_subgroup_size_control
- VK_EXT_texel_buffer_alignment
- VK_EXT_tooling_info
- VK_EXT_transform_feedback
- VK_EXT_vertex_attribute_divisor
- VK_EXT_vertex_input_dynamic_state
- VK_EXT_ycbcr_image_arrays
- VK_AMD_buffer_marker
- VK_AMD_calibrated_timestamps
- VK_AMD_device_coherent_memory
- VK_AMD_display_native_hdr
- VK_AMD_draw_indirect_count
- VK_AMD_gcn_shader
- VK_AMD_gpa_interface
- VK_AMD_gpu_shader_half_float
- VK_AMD_gpu_shader_int16
- VK_AMD_memory_overallocation_behavior
- VK_AMD_mixed_attachment_samples
- VK_AMD_shader_ballot
- VK_AMD_shader_core_properties
- VK_AMD_shader_core_properties2
- VK_AMD_shader_early_and_late_fragment_tests
- VK_AMD_shader_explicit_vertex_parameter
- VK_AMD_shader_image_load_store_lod
- VK_AMD_shader_info
- VK_AMD_shader_trinary_minmax
- VK_GOOGLE_decorate_string
- VK_GOOGLE_hlsl_functionality1
- VK_GOOGLE_user_type
- VK_VALVE_mutable_descriptor_type
- # of layers: 1
- VK_LAYER_AMD_switchable_graphics
- # of memory heaps: 3
- heap 1: 24304 MB
- heap 2: 7908 MB
- heap 3: 256 MB
- # of features: 55
- robustBufferAccess: YES
- fullDrawIndexUint32: YES
- imageCubeArray: YES
- independentBlend: YES
- geometryShader: YES
- tessellationShader: YES
- sampleRateShading: YES
- dualSrcBlend: YES
- logicOp: YES
- multiDrawIndirect: YES
- drawIndirectFirstInstance: YES
- depthClamp: YES
- depthBiasClamp: YES
- fillModeNonSolid: YES
- depthBounds: YES
- wideLines: YES
- largePoints: YES
- alphaToOne: NO
- multiViewport: YES
- samplerAnisotropy: YES
- textureCompressionETC2: NO
- textureCompressionASTC_LDR: NO
- textureCompressionBC: YES
- occlusionQueryPrecise: YES
- pipelineStatisticsQuery: YES
- vertexPipelineStoresAndAtomics: YES
- fragmentStoresAndAtomics: YES
- shaderTessellationAndGeometryPointSize: YES
- shaderImageGatherExtended: YES
- shaderStorageImageExtendedFormats: YES
- shaderStorageImageMultisample: YES
- shaderStorageImageReadWithoutFormat: YES
- shaderStorageImageWriteWithoutFormat: YES
- shaderUniformBufferArrayDynamicIndexing: YES
- shaderSampledImageArrayDynamicIndexing: YES
- shaderStorageBufferArrayDynamicIndexing: YES
- shaderStorageImageArrayDynamicIndexing: YES
- shaderClipDistance: YES
- shaderCullDistance: YES
- shaderFloat64: YES
- shaderInt64: YES
- shaderInt16: YES
- shaderResourceResidency: YES
- shaderResourceMinLod: YES
- sparseBinding: YES
- sparseResidencyBuffer: YES
- sparseResidencyImage2D: YES
- sparseResidencyImage3D: YES
- sparseResidency2Samples: NO
- sparseResidency4Samples: NO
- sparseResidency8Samples: NO
- sparseResidency16Samples: NO
- sparseResidencyAliased: YES
- variableMultisampleRate: YES
- inheritedQueries: YES
- # of hardware limits: 106
- maxImageDimension1D: 16384
- maxImageDimension2D: 16384
- maxImageDimension3D: 8192
- maxImageDimensionCube: 16384
- maxImageArrayLayers: 8192
- maxTexelBufferElements: 4294967295
- maxUniformBufferRange: 4294967295
- maxStorageBufferRange: 4294967295
- maxPushConstantsSize: 128
- maxMemoryAllocationCount: 4096
- maxSamplerAllocationCount: 1048576
- bufferImageGranularity: 1
- sparseAddressSpaceSize: 17566416240640
- maxBoundDescriptorSets: 32
- maxPerStageDescriptorSamplers: 4294967295
- maxSamplerAllocationCount: 4294967295
- maxPerStageDescriptorStorageBuffers: 4294967295
- maxPerStageDescriptorSampledImages: 4294967295
- maxPerStageDescriptorStorageImages: 4294967295
- maxPerStageDescriptorInputAttachments: 4294967295
- maxPerStageResources: 4294967295
- maxDescriptorSetSamplers: 4294967295
- maxDescriptorSetUniformBuffers: 4294967295
- maxDescriptorSetUniformBuffersDynamic: 8
- maxDescriptorSetStorageBuffers: 4294967295
- maxDescriptorSetStorageBuffersDynamic: 8
- maxDescriptorSetSampledImages: 4294967295
- maxDescriptorSetStorageImages: 4294967295
- maxDescriptorSetInputAttachments: 4294967295
- maxVertexInputAttributes: 64
- maxVertexInputBindings: 32
- maxVertexInputAttributeOffset: 4294967295
- maxVertexInputBindingStride: 16383
- maxVertexOutputComponents: 128
- maxTessellationGenerationLevel: 64
- maxTessellationPatchSize: 32
- maxTessellationControlPerVertexInputComponents: 128
- maxTessellationControlPerVertexOutputComponents: 128
- maxTessellationControlPerPatchOutputComponents: 120
- maxTessellationControlTotalOutputComponents: 4096
- maxTessellationEvaluationInputComponents: 128
- maxTessellationEvaluationOutputComponents: 128
- maxGeometryShaderInvocations: 126
- maxGeometryInputComponents: 128
- maxGeometryOutputComponents: 128
- maxGeometryOutputVertices: 256
- maxGeometryTotalOutputComponents: 1024
- maxFragmentInputComponents: 128
- maxFragmentOutputAttachments: 8
- maxFragmentDualSrcAttachments: 1
- maxFragmentCombinedOutputResources: 4294967295
- maxComputeSharedMemorySize: 32768
- maxComputeSharedMemorySize: 65535 x 65535 x 65535
- maxComputeWorkGroupInvocations: 1024
- maxComputeWorkGroupSize: 1024 x 1024 x 1024
- subPixelPrecisionBits: 8
- subTexelPrecisionBits: 8
- mipmapPrecisionBits: 8
- maxDrawIndexedIndexValue: 4294967295
- maxDrawIndirectCount: 4294967295
- maxSamplerLodBias: 15.996094
- maxSamplerAnisotropy: 16.000000
- maxViewports: 16
- maxViewportDimensions: 16384 x 16384
- viewportBoundsRange: -32768.000000 x 32767.000000
- viewportSubPixelBits: 8
- minMemoryMapAlignment: 64
- minTexelBufferOffsetAlignment: 4
- minUniformBufferOffsetAlignment: 16
- minStorageBufferOffsetAlignment: 4
- minTexelOffset: -64
- maxTexelOffset: 63
- minTexelGatherOffset: -32
- maxTexelGatherOffset: 31
- minInterpolationOffset: -2.000000
- maxInterpolationOffset: 1.000000
- subPixelInterpolationOffsetBits: 8
- maxFramebufferWidth: 16384
- maxFramebufferHeight: 16384
- maxFramebufferLayers: 8192
- framebufferColorSampleCounts: 15
- framebufferDepthSampleCounts: 15
- framebufferStencilSampleCounts: 15
- framebufferNoAttachmentsSampleCounts: 15
- maxColorAttachments: 8
- sampledImageColorSampleCounts: 15
- sampledImageIntegerSampleCounts: 15
- sampledImageDepthSampleCounts: 15
- sampledImageStencilSampleCounts: 15
- storageImageSampleCounts: 15
- maxSampleMaskWords: 1
- timestampComputeAndGraphics: 1
- timestampPeriod: 10.000000
- maxClipDistances: 8
- maxCullDistances: 8
- maxCombinedClipAndCullDistances: 8
- discreteQueuePriorities: 2
- pointSizeRange: 0.000000 x 8191.875000
- lineWidthRange: 0.000000 x 8191.875000
- pointSizeGranularity: 0.125000
- lineWidthGranularity: 0.125000
- strictLines: 0
- standardSampleLocations: 1
- optimalBufferCopyOffsetAlignment: 1
- optimalBufferCopyRowPitchAlignment: 1
- nonCoherentAtomSize: 128
Check forum for Adrenaline 23.7.2
