AMD Catalyst 13.30-140108a with Kaveri A10 APU Support, OpenGL and OpenCL Info

2014/01/27 JeGX

AMD Kaveri APU A10-7850K, GLSL Hacker OpenGL Viewer demo

AMD has released few days ago a beta version of its Catalyst driver with the support of latest A10 Kaveri APUs.

You can download it from this page.

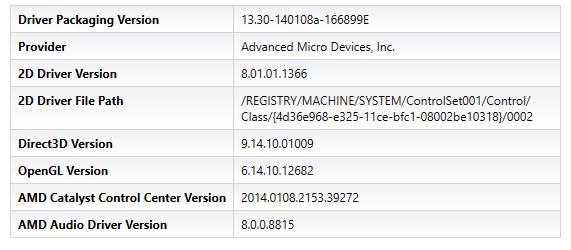

AMD Catalyst 13.30-140108a CCC info

AMD Kaveri APU A10-7850K, GPU Caps Viewer

This driver supports OpenGL 4.3 and exposes 276 extensions (GL=253 and WGL=23). Compared to Catalyst 13.12 WHQL, this driver adds 13 OpenGL extensions and removes two ones:

Extensions added:

GL_AMD_gpu_shader_int64
GL_AMD_interleaved_elements
GL_AMD_occlusion_query_event
GL_AMD_shader_stencil_value_export
GL_AMD_shader_trinary_minmax
GL_AMD_sparse_texture
GL_AMD_stencil_operation_extended
GL_AMD_transform_feedback4
GL_ARB_multi_bind
GL_ARB_shader_group_vote
GL_EXT_depth_bounds_test
GL_EXT_shader_integer_mix
GL_NV_depth_buffer_float

Extensions removed:

GL_AMDX_vertex_shader_tessellator
GL_AMD_vertex_shader_tessellator

Here is the complete list of all 276 extensions exposed for an A10-7850K APU under Win8 64-bit:

GL_AMDX_debug_output
GL_AMD_blend_minmax_factor
GL_AMD_conservative_depth
GL_AMD_debug_output
GL_AMD_depth_clamp_separate
GL_AMD_draw_buffers_blend
GL_AMD_gpu_shader_int64
GL_AMD_interleaved_elements
GL_AMD_multi_draw_indirect
GL_AMD_name_gen_delete
GL_AMD_occlusion_query_event
GL_AMD_performance_monitor
GL_AMD_pinned_memory
GL_AMD_query_buffer_object
GL_AMD_sample_positions
GL_AMD_seamless_cubemap_per_texture
GL_AMD_shader_atomic_counter_ops
GL_AMD_shader_stencil_export
GL_AMD_shader_stencil_value_export
GL_AMD_shader_trace
GL_AMD_shader_trinary_minmax
GL_AMD_sparse_texture
GL_AMD_stencil_operation_extended
GL_AMD_texture_cube_map_array
GL_AMD_texture_texture4
GL_AMD_transform_feedback3_lines_triangles
GL_AMD_transform_feedback4
GL_AMD_vertex_shader_layer
GL_AMD_vertex_shader_viewport_index
GL_ARB_ES2_compatibility
GL_ARB_ES3_compatibility
GL_ARB_arrays_of_arrays
GL_ARB_base_instance
GL_ARB_blend_func_extended
GL_ARB_clear_buffer_object
GL_ARB_color_buffer_float
GL_ARB_compatibility
GL_ARB_compressed_texture_pixel_storage
GL_ARB_compute_shader
GL_ARB_conservative_depth
GL_ARB_copy_buffer
GL_ARB_copy_image
GL_ARB_debug_output
GL_ARB_depth_buffer_float
GL_ARB_depth_clamp
GL_ARB_depth_texture
GL_ARB_draw_buffers
GL_ARB_draw_buffers_blend
GL_ARB_draw_elements_base_vertex
GL_ARB_draw_indirect
GL_ARB_draw_instanced
GL_ARB_explicit_attrib_location
GL_ARB_explicit_uniform_location
GL_ARB_fragment_coord_conventions
GL_ARB_fragment_layer_viewport
GL_ARB_fragment_program
GL_ARB_fragment_program_shadow
GL_ARB_fragment_shader
GL_ARB_framebuffer_no_attachments
GL_ARB_framebuffer_object
GL_ARB_framebuffer_sRGB
GL_ARB_geometry_shader4
GL_ARB_get_program_binary
GL_ARB_gpu_shader5
GL_ARB_gpu_shader_fp64
GL_ARB_half_float_pixel
GL_ARB_half_float_vertex
GL_ARB_imaging
GL_ARB_instanced_arrays
GL_ARB_internalformat_query
GL_ARB_internalformat_query2
GL_ARB_invalidate_subdata
GL_ARB_map_buffer_alignment
GL_ARB_map_buffer_range
GL_ARB_multi_bind
GL_ARB_multi_draw_indirect
GL_ARB_multisample
GL_ARB_multitexture
GL_ARB_occlusion_query
GL_ARB_occlusion_query2
GL_ARB_pixel_buffer_object
GL_ARB_point_parameters
GL_ARB_point_sprite
GL_ARB_program_interface_query
GL_ARB_provoking_vertex
GL_ARB_query_buffer_object
GL_ARB_sample_shading
GL_ARB_sampler_objects
GL_ARB_seamless_cube_map
GL_ARB_seamless_cubemap_per_texture
GL_ARB_separate_shader_objects
GL_ARB_shader_atomic_counters
GL_ARB_shader_bit_encoding
GL_ARB_shader_group_vote
GL_ARB_shader_image_load_store
GL_ARB_shader_image_size
GL_ARB_shader_objects
GL_ARB_shader_precision
GL_ARB_shader_stencil_export
GL_ARB_shader_storage_buffer_object
GL_ARB_shader_subroutine
GL_ARB_shader_texture_lod
GL_ARB_shading_language_100
GL_ARB_shading_language_420pack
GL_ARB_shading_language_packing
GL_ARB_shadow
GL_ARB_shadow_ambient
GL_ARB_stencil_texturing
GL_ARB_sync
GL_ARB_tessellation_shader
GL_ARB_texture_border_clamp
GL_ARB_texture_buffer_object
GL_ARB_texture_buffer_object_rgb32
GL_ARB_texture_buffer_range
GL_ARB_texture_compression
GL_ARB_texture_compression_bptc
GL_ARB_texture_compression_rgtc
GL_ARB_texture_cube_map
GL_ARB_texture_cube_map_array
GL_ARB_texture_env_add
GL_ARB_texture_env_combine
GL_ARB_texture_env_crossbar
GL_ARB_texture_env_dot3
GL_ARB_texture_float
GL_ARB_texture_gather
GL_ARB_texture_mirror_clamp_to_edge
GL_ARB_texture_mirrored_repeat
GL_ARB_texture_multisample
GL_ARB_texture_non_power_of_two
GL_ARB_texture_query_levels
GL_ARB_texture_query_lod
GL_ARB_texture_rectangle
GL_ARB_texture_rg
GL_ARB_texture_rgb10_a2ui
GL_ARB_texture_snorm
GL_ARB_texture_storage
GL_ARB_texture_storage_multisample
GL_ARB_texture_view
GL_ARB_timer_query
GL_ARB_transform_feedback2
GL_ARB_transform_feedback3
GL_ARB_transform_feedback_instanced
GL_ARB_transpose_matrix
GL_ARB_uniform_buffer_object
GL_ARB_vertex_array_bgra
GL_ARB_vertex_array_object
GL_ARB_vertex_attrib_64bit
GL_ARB_vertex_attrib_binding
GL_ARB_vertex_buffer_object
GL_ARB_vertex_program
GL_ARB_vertex_shader
GL_ARB_vertex_type_10f_11f_11f_rev
GL_ARB_vertex_type_2_10_10_10_rev
GL_ARB_viewport_array
GL_ARB_window_pos
GL_ATI_draw_buffers
GL_ATI_envmap_bumpmap
GL_ATI_fragment_shader
GL_ATI_separate_stencil
GL_ATI_texture_compression_3dc
GL_ATI_texture_env_combine3
GL_ATI_texture_float
GL_ATI_texture_mirror_once
GL_EXT_abgr
GL_EXT_bgra
GL_EXT_bindable_uniform
GL_EXT_blend_color
GL_EXT_blend_equation_separate
GL_EXT_blend_func_separate
GL_EXT_blend_minmax
GL_EXT_blend_subtract
GL_EXT_compiled_vertex_array
GL_EXT_copy_buffer
GL_EXT_copy_texture
GL_EXT_depth_bounds_test
GL_EXT_direct_state_access
GL_EXT_draw_buffers2
GL_EXT_draw_instanced
GL_EXT_draw_range_elements
GL_EXT_fog_coord
GL_EXT_framebuffer_blit
GL_EXT_framebuffer_multisample
GL_EXT_framebuffer_object
GL_EXT_framebuffer_sRGB
GL_EXT_geometry_shader4
GL_EXT_gpu_program_parameters
GL_EXT_gpu_shader4
GL_EXT_histogram
GL_EXT_multi_draw_arrays
GL_EXT_packed_depth_stencil
GL_EXT_packed_float
GL_EXT_packed_pixels
GL_EXT_pixel_buffer_object
GL_EXT_point_parameters
GL_EXT_provoking_vertex
GL_EXT_rescale_normal
GL_EXT_secondary_color
GL_EXT_separate_specular_color
GL_EXT_shader_image_load_store
GL_EXT_shader_integer_mix
GL_EXT_shadow_funcs
GL_EXT_stencil_wrap
GL_EXT_subtexture
GL_EXT_texgen_reflection
GL_EXT_texture3D
GL_EXT_texture_array
GL_EXT_texture_buffer_object
GL_EXT_texture_compression_bptc
GL_EXT_texture_compression_latc
GL_EXT_texture_compression_rgtc
GL_EXT_texture_compression_s3tc
GL_EXT_texture_cube_map
GL_EXT_texture_edge_clamp
GL_EXT_texture_env_add
GL_EXT_texture_env_combine
GL_EXT_texture_env_dot3
GL_EXT_texture_filter_anisotropic
GL_EXT_texture_integer
GL_EXT_texture_lod
GL_EXT_texture_lod_bias
GL_EXT_texture_mirror_clamp
GL_EXT_texture_object
GL_EXT_texture_rectangle
GL_EXT_texture_sRGB
GL_EXT_texture_sRGB_decode
GL_EXT_texture_shared_exponent
GL_EXT_texture_snorm
GL_EXT_texture_storage
GL_EXT_texture_swizzle
GL_EXT_timer_query
GL_EXT_transform_feedback
GL_EXT_vertex_array
GL_EXT_vertex_array_bgra
GL_EXT_vertex_attrib_64bit
GL_IBM_texture_mirrored_repeat
GL_KHR_debug
GL_KTX_buffer_region
GL_NV_blend_square
GL_NV_conditional_render
GL_NV_copy_depth_to_color
GL_NV_copy_image
GL_NV_depth_buffer_float
GL_NV_explicit_multisample
GL_NV_float_buffer
GL_NV_half_float
GL_NV_primitive_restart
GL_NV_texgen_reflection
GL_NV_texture_barrier
GL_SGIS_generate_mipmap
GL_SGIS_texture_edge_clamp
GL_SGIS_texture_lod
GL_SUN_multi_draw_arrays
GL_WIN_swap_hint
WGL_EXT_swap_control
WGL_ARB_extensions_string
WGL_ARB_pixel_format
WGL_ATI_pixel_format_float
WGL_ARB_pixel_format_float
WGL_ARB_multisample
WGL_EXT_swap_control_tear
WGL_ARB_pbuffer
WGL_ARB_render_texture
WGL_ARB_make_current_read
WGL_EXT_extensions_string
WGL_ARB_buffer_region
WGL_EXT_framebuffer_sRGB
WGL_ATI_render_texture_rectangle
WGL_EXT_pixel_format_packed_float
WGL_I3D_genlock
WGL_NV_swap_group
WGL_ARB_create_context
WGL_AMD_gpu_association
WGL_AMDX_gpu_association
WGL_ARB_create_context_profile
WGL_NV_DX_interop
WGL_NV_DX_interop2

And here is GPU Caps Viewer OpenCL report:


- Num OpenCL platforms: 1
- CL_PLATFORM_NAME: AMD Accelerated Parallel Processing
- CL_PLATFORM_VENDOR: Advanced Micro Devices, Inc.
- CL_PLATFORM_VERSION: OpenCL 1.2 AMD-APP (1359.4)
- CL_PLATFORM_PROFILE: FULL_PROFILE
- Num devices: 2

	- CL_DEVICE_NAME: Spectre
	- CL_DEVICE_VENDOR: Advanced Micro Devices, Inc.
	- CL_DRIVER_VERSION: 1359.4 (VM)
	- CL_DEVICE_PROFILE: FULL_PROFILE
	- CL_DEVICE_VERSION: OpenCL 1.2 AMD-APP (1359.4)
	- CL_DEVICE_TYPE: GPU
	- CL_DEVICE_VENDOR_ID: 0x1002
	- CL_DEVICE_MAX_COMPUTE_UNITS: 8
	- CL_DEVICE_MAX_CLOCK_FREQUENCY: 720MHz
	- CL_DEVICE_ADDRESS_BITS: 32
	- CL_DEVICE_MAX_MEM_ALLOC_SIZE: 589056KB
	- CL_DEVICE_GLOBAL_MEM_SIZE: 2047MB
	- CL_DEVICE_MAX_PARAMETER_SIZE: 1024
	- CL_DEVICE_GLOBAL_MEM_CACHELINE_SIZE: 64 Bytes
	- CL_DEVICE_GLOBAL_MEM_CACHE_SIZE: 16KB
	- CL_DEVICE_ERROR_CORRECTION_SUPPORT: NO
	- CL_DEVICE_LOCAL_MEM_TYPE: Local (scratchpad)
	- CL_DEVICE_LOCAL_MEM_SIZE: 32KB
	- CL_DEVICE_MAX_CONSTANT_BUFFER_SIZE: 64KB
	- CL_DEVICE_MAX_WORK_ITEM_DIMENSIONS: 3
	- CL_DEVICE_MAX_WORK_ITEM_SIZES: [256 ; 256 ; 256]
	- CL_DEVICE_MAX_WORK_GROUP_SIZE: 256
	- CL_EXEC_NATIVE_KERNEL: 9725280
	- CL_DEVICE_IMAGE_SUPPORT: YES
	- CL_DEVICE_MAX_READ_IMAGE_ARGS: 128
	- CL_DEVICE_MAX_WRITE_IMAGE_ARGS: 8
	- CL_DEVICE_IMAGE2D_MAX_WIDTH: 16384
	- CL_DEVICE_IMAGE2D_MAX_HEIGHT: 16384
	- CL_DEVICE_IMAGE3D_MAX_WIDTH: 2048
	- CL_DEVICE_IMAGE3D_MAX_HEIGHT: 2048
	- CL_DEVICE_IMAGE3D_MAX_DEPTH: 2048
	- CL_DEVICE_MAX_SAMPLERS: 16
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_CHAR: 4
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_SHORT: 2
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_INT: 1
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_LONG: 1
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_FLOAT: 1
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_DOUBLE: 1
	- CL_DEVICE_EXTENSIONS: 21
	- Extensions:
		- cl_khr_fp64
		- cl_amd_fp64
		- cl_khr_global_int32_base_atomics
		- cl_khr_global_int32_extended_atomics
		- cl_khr_local_int32_base_atomics
		- cl_khr_local_int32_extended_atomics
		- cl_khr_int64_base_atomics
		- cl_khr_int64_extended_atomics
		- cl_khr_3d_image_writes
		- cl_khr_byte_addressable_store
		- cl_khr_gl_sharing
		- cl_ext_atomic_counters_32
		- cl_amd_device_attribute_query
		- cl_amd_vec3
		- cl_amd_printf
		- cl_amd_media_ops
		- cl_amd_media_ops2
		- cl_amd_popcnt
		- cl_khr_d3d10_sharing
		- cl_khr_dx9_media_sharing
		- cl_khr_image2d_from_buffer

	- CL_DEVICE_NAME: AMD A10-7850K APU with Radeon(TM) R7 Graphics
	- CL_DEVICE_VENDOR: AuthenticAMD
	- CL_DRIVER_VERSION: 1359.4 (sse2,avx,fma4)
	- CL_DEVICE_PROFILE: FULL_PROFILE
	- CL_DEVICE_VERSION: OpenCL 1.2 AMD-APP (1359.4)
	- CL_DEVICE_TYPE: CPU
	- CL_DEVICE_VENDOR_ID: 0x1002
	- CL_DEVICE_MAX_COMPUTE_UNITS: 4
	- CL_DEVICE_MAX_CLOCK_FREQUENCY: 3693MHz
	- CL_DEVICE_ADDRESS_BITS: 32
	- CL_DEVICE_MAX_MEM_ALLOC_SIZE: 1048576KB
	- CL_DEVICE_GLOBAL_MEM_SIZE: 2048MB
	- CL_DEVICE_MAX_PARAMETER_SIZE: 4096
	- CL_DEVICE_GLOBAL_MEM_CACHELINE_SIZE: 64 Bytes
	- CL_DEVICE_GLOBAL_MEM_CACHE_SIZE: 16KB
	- CL_DEVICE_ERROR_CORRECTION_SUPPORT: NO
	- CL_DEVICE_LOCAL_MEM_TYPE: Global
	- CL_DEVICE_LOCAL_MEM_SIZE: 32KB
	- CL_DEVICE_MAX_CONSTANT_BUFFER_SIZE: 64KB
	- CL_DEVICE_MAX_WORK_ITEM_DIMENSIONS: 3
	- CL_DEVICE_MAX_WORK_ITEM_SIZES: [1024 ; 1024 ; 1024]
	- CL_DEVICE_MAX_WORK_GROUP_SIZE: 1024
	- CL_EXEC_NATIVE_KERNEL: 9725284
	- CL_DEVICE_IMAGE_SUPPORT: YES
	- CL_DEVICE_MAX_READ_IMAGE_ARGS: 128
	- CL_DEVICE_MAX_WRITE_IMAGE_ARGS: 8
	- CL_DEVICE_IMAGE2D_MAX_WIDTH: 8192
	- CL_DEVICE_IMAGE2D_MAX_HEIGHT: 8192
	- CL_DEVICE_IMAGE3D_MAX_WIDTH: 2048
	- CL_DEVICE_IMAGE3D_MAX_HEIGHT: 2048
	- CL_DEVICE_IMAGE3D_MAX_DEPTH: 2048
	- CL_DEVICE_MAX_SAMPLERS: 16
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_CHAR: 16
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_SHORT: 8
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_INT: 4
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_LONG: 2
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_FLOAT: 8
	- CL_DEVICE_PREFERRED_VECTOR_WIDTH_DOUBLE: 4
	- CL_DEVICE_EXTENSIONS: 18
	- Extensions:
		- cl_khr_fp64
		- cl_amd_fp64
		- cl_khr_global_int32_base_atomics
		- cl_khr_global_int32_extended_atomics
		- cl_khr_local_int32_base_atomics
		- cl_khr_local_int32_extended_atomics
		- cl_khr_3d_image_writes
		- cl_khr_byte_addressable_store
		- cl_khr_gl_sharing
		- cl_ext_device_fission
		- cl_amd_device_attribute_query
		- cl_amd_vec3
		- cl_amd_printf
		- cl_amd_media_ops
		- cl_amd_media_ops2
		- cl_amd_popcnt
		- cl_khr_d3d10_sharing
		- cl_amd_svm

One thought on “AMD Catalyst 13.30-140108a with Kaveri A10 APU Support, OpenGL and OpenCL Info”
