NVIDIA has officially launched the new GeForce RTX 5060 family with two graphics cards: the GeForce RTX 5060 Ti and the GeForce RTX 5060. Both graphics cards are based on the Blackwell GB206 GPU.
The GeForce RTX 5060 Ti has two variants: one with 16GB of VRAM and the other with 8GB. The RTX 5060 non-Ti has 8GB of VRAM. Compared to the RTX 4060 Ti, the RTX 5060 Ti is more or less 13% faster and is 40% slower than the RTX 5070.
The RTX 5060 Series is designed for 1080p gaming (1920×1080). The RTX 5060 Ti will be available from tomorrow (April 16 2025) while the non-Ti version will be available later in May.
These new NVIDIA graphics cards will compete with new AMD Radeon RX 9060 Series.

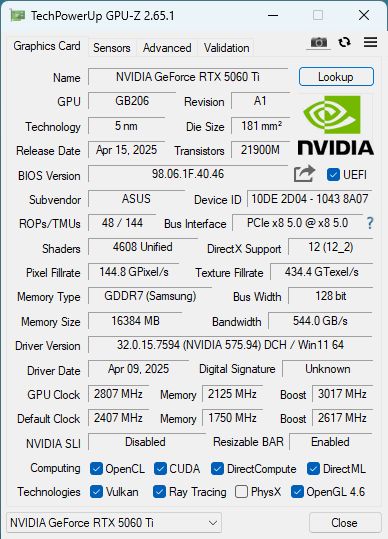

1 – GeForce RTX 5060 Ti full specifications
- GPU: GB206-300, Blackwell architecture, TSMC 5nm, base clock: 2410 MHz, boost clock: 2570 MHz
- CUDA cores: 4608 (full version)
- Streaming Multiprocessors (SMs): 36 (128 CUDA cores / SM)
- Tensor cores: 144 (5th generation – 4TC/SM)
- Ray tracing cores: 36 (4th generation)
- Texture units: 144
- ROPs: 48
- Max GPU temperature: 87°C
- Memory: 8GB/16GB GDDR7, 128-bit memory bus, bandwidth: 448 GB/sec
- DLSS: DLSS 4
- Total Power Consumption: 180W
- Power connectors: 1x PCIe 8-pin cables or 300 W or greater PCIe Gen 5 cable
- MSRP: USD $429 (16GB) and $379 (8GB)
- Launch date: April 16, 2025
2 – GeForce RTX 5060 full specifications
- GPU: GB206-300, Blackwell architecture, TSMC 5nm, base clock: 2280 MHz, boost clock: 2500 MHz
- CUDA cores: 3840
- Streaming Multiprocessors (SMs): 30 (128 CUDA cores / SM)
- Tensor cores: 120 (5th generation – 4TC/SM)
- Ray tracing cores: 30 (4th generation)
- Texture units: 120
- ROPs: 40
- Max GPU temperature: 87°C
- Memory: 8GB GDDR7, 128-bit memory bus, bandwidth: 448 GB/sec
- DLSS: DLSS 4
- Total Power Consumption: 145W
- Power connectors: 1x PCIe 8-pin cables or 300 W or greater PCIe Gen 5 cable
- MSRP: USD $299
- Launch date: May 2025
https://www.nvidia.com/en-us/geforce/news/geforce-rtx-5060-ti-game-ready-driver/
https://www.nvidia.com/en-us/drivers/details/243341/
Nvidia GeForce 576.02 WHQL graphics driver
